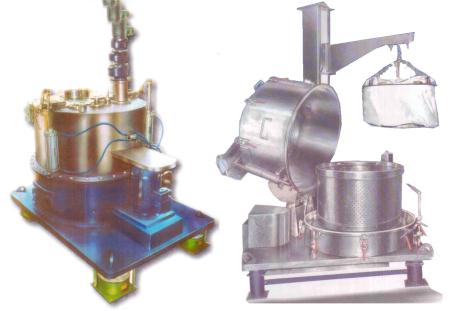

Lifting Bag Type With Dome Open
The latest trend in solid /liquid separation is to go in for greater ease un cake handling. Filter cloth is available in the desired strength and micron size. The fabric with poly- propene, woven/ non woven polyester, nn, cotton etc.
with strengthening strips and hook up arrangement are easily available . The ACE lifting bag system supports such filter bags. Quick and easy fixing arrangement helps in the centrifuging . The time factor for the various operations is studied and this is passed on to the user at the time of installation and commissioning.
The filter bag setting is precisely done so that the entire assembly is as fool-proof as the simple top discharge centrifuge. Hence 100% solid liquid separation without loss of a single solid particle in filtrate is achieved by the instant cake lifting type centrifuge.
The head room required for a particular lifting type machine is indicated in the in the table shown below
Technical Data
| MOTOR H.P | Basket Size | G Force | RPM | MOUTH I.D (MM_ | BASKET CAPACITY | Filter Area SQ.MTR | Platform Length L( MM) | Platform Width W1( MM) | W2 ( MM) | Head Room | ||
| Vol (LT) | WT ( KG) | E1 ( MM | E2( MM) | |||||||||
| 3 | 24” x 12” | 500 | 1200 | 410 | 50 | 60 | 0.604 | 1100 | 900 | 1250 | 1700 | 1400 |
| 5 | 30” x 12” | 600 | 1200 | 510 | 80 | 90 | 0.740 | 1450 | 1150 | 1600 | 1850 | 1650 |
| 7.5 | 36”x 18” | 500 | 1000 | 610 | 170 | 200 | 1.329 | 1650 | 1250 | 1800 | 2550 | 1950 |
| 15 | 48” x 20” | 435 | 800 | 810 | 310 | 370 | 1.954 | 2100 | 1650 | 2250 | 3000 | 2500 |
| 20 | 60” x 24” | 410 | 700 | 1010 | 620 | 750 | 2.911 | 2400 | 2000 | 2550 | 3800 | 3000 |
| 30 | 71” x 30” | 310 | 550 | 1210 | 1100 | 1350 | 4.343 | 2800 | 2200 | 2950 | 4000 | 3500 |
Advantages Of Lifting Bag Type Centrifuges
- The time required for cake removal is negligible.
- Production is increased two-fold.
- Manual contact with cake is avoided.
- Cake can be easily elevated to upper storeys
- Without the use of lifts or trolleys.
- Cake Spillage on the floor is nil.
- More volumetric charge per machine available.
- Easy cleaning of the basket in & out.
- Full opening of the lid helps maintenance
Advantages Of 4 Point Mounting
- The vibration trmission is nil
- The machine can be used on upper storey.
- Good & clean house –keeping possible.
- No cost of R .foundation
- Can be shifted easily.
- Trolley mounting machines possible.
- No rusting & greasing headaches.
- Maintenance of suspension negligible.
- Saving in floor area of the machine
- cGMP in the true sense.
Advantages Of Full Body Top Opening
The central flange of the machine is very thick & wide .It is machined all over. The bottom flange is given a square groove to hold Teflon, PTFE, SILICON packing with required projection. The top flange sits truly on the packing making the joint 100% leak proof. Sufficient LBD LOCK allows quick & easy opening & closing.
The body top is hinged to the base plate. The hydraulic cinder opens & closes the top part of the body easily. The body top once opened, gives easy access to the entire basket in & out. The entire body from the inside & even then access to the access to the central drive assembly is also made available The basket if required can be removed when body top opens fully. Maintenance of the shaft & bearing housing can be easily done in top body opening machines .
